11 Common Injection Molding Defects: Identification, Causes, and Prevention

Injection molding defects can rapidly spike scrap rates, delay production schedules, and trigger costly tooling modifications for engineering and procurement teams. Whether a flaw is cosmetic or structural, identifying its mechanical root cause quickly is vital to restoring process stability and safeguarding project budgets.

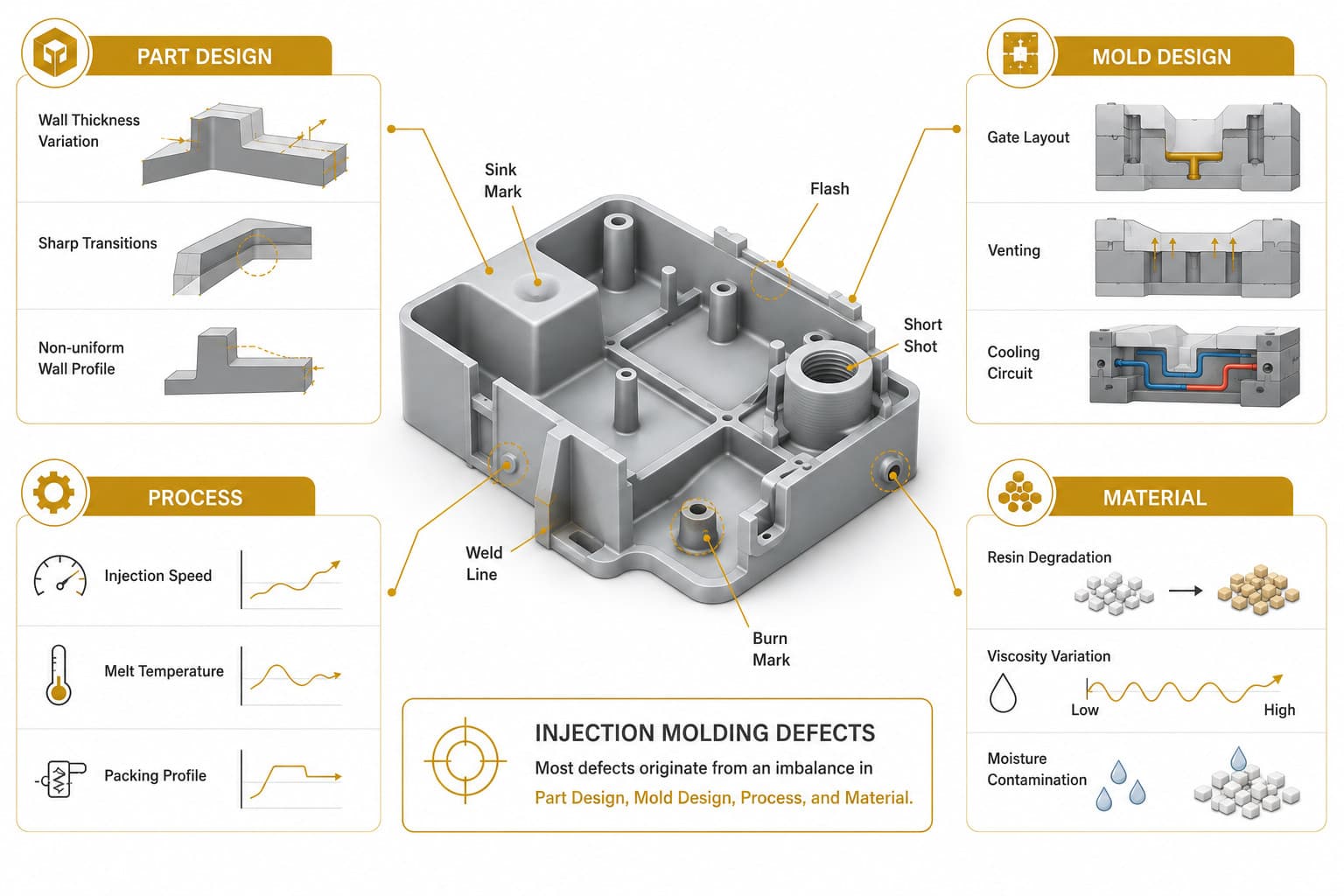

Most common injection molding defects stem from an imbalance across four primary variables:

Part Design: Complex dimensional features, sharp transitions, or non-uniform wall profiles.
Mold Architecture: Improper gating layouts, restrictive venting, or uneven cooling line circuits.
Process Conditions: Volatile injection speeds, incorrect melt temperatures, or inadequate packing profiles.
Material Selection: Resin degradation, batch-to-batch viscosity variances, or ambient moisture contamination.

At ApexBatch, we have supported thousands of injection molding projects across prototype and production applications. In this guide, we break down the mechanics behind 11 common injection molding defects, their underlying causes, and practical engineering solutions.

Technical Deep Dives: 11 Common Injection Molding Defects

Experienced molding engineers know that defects are rarely random events. A sink mark, weld line, or short shot is usually the visible result of an imbalance in part design, tooling, processing conditions, or material preparation. The key to effective troubleshooting is identifying the underlying mechanism rather than simply adjusting machine settings. Below are 11 of the most common injection molding defects, along with their typical causes and corrective actions.

Need a quick overview? Skip ahead to the Injection Molding Defects and Solutions Matrix to compare defect symptoms, root causes, severity levels, and recommended solutions at a glance.

Defects Caused by Part Design

Many molding defects can be traced back to part geometry. Large wall-thickness variations, oversized ribs, and abrupt transitions often create uneven shrinkage and internal stresses that are difficult to correct later in production.

1. Sink Marks

Sink marks are structural or cosmetic flaws that manifest as localized depressions on the surface of a molded part, usually appearing near thick features or internal structural elements.

Visual Identification: Shallow surface dimples, depressions, or hollows forming directly opposite heavy internal geometries like ribs, bosses, or thick wall transitions.

Mechanical Breakdown & Root Causes: During the cooling cycle, the outer skin of the polymer solidifies first against the cold mold steel walls. Because the thicker interior core takes longer to cool, it undergoes volumetric shrinkage last, pulling the already solidified outer skin inward. This is primarily caused by part design flaws, such as excessive wall thickness variation, oversized internal ribs or bosses, abrupt geometry steps, or poor nominal wall consistency. On the production line, this is worsened by low packing pressure or brief hold profiles.

How to Fix & Engineering Solutions:

Design Optimization: Maintain internal rib thicknesses between 40% and 60% of the nominal wall thickness to avoid mass accumulation. Core out heavy solid geometry into thin-walled rib networks.
Process Adjustment: Increase packing pressure limits and extend hold times to force additional molten plastic into the shrinking core. Lower melt temperatures to reduce overall thermal contraction.

💡 ApexBatch Engineer’s Note: In production, sink marks are often first blamed on insufficient packing pressure. However, when sink marks repeatedly appear in the same location despite aggressive packing adjustments, the root cause is usually excessive wall thickness or oversized ribs rather than process settings. Increasing packing pressure beyond a certain point often creates flash before it eliminates the sink.

2. Warpage

Warpage is a post-molding dimensional distortion where the final component twists, bends, or bows away from its intended CAD baseline layout.

Visual Identification: Distorted, bent, bowed, or twisted part geometry upon ejection from the tool.

Mechanical Breakdown & Root Causes: Warpage is driven by non-uniform cooling rates within the component, leading to differential volumetric shrinkage and high residual internal stresses. While it can be exacerbated by uneven mold cooling circuits, it is heavily triggered by part design issues like excessive wall thickness variation, non-uniform wall profiles, or poor nominal wall consistency.

How to Fix & Engineering Solutions:

Design Optimization: Maintain strict nominal wall consistency. When transitions are unavoidable, utilize gradual tapers instead of sharp geometric steps to distribute thermal stresses evenly. Add structural corrugations or ribs to counter bowing.
Tooling/Process Adjustment: Improve mold cooling line uniformity by engineering balanced cooling circuits. Extend cooling time parameters within the cycle sequence.

💡 ApexBatch Engineer's Note: When warpage repeatedly appears in the same direction, increasing cooling time alone rarely solves the problem. In most cases, the underlying cause is uneven shrinkage driven by wall-thickness variation, fiber orientation, or cooling imbalance within the mold.

3. Vacuum Voids

Vacuum voids are internal material separations that manifest as hollow bubbles inside thick structural geometries.

Visual Identification: Internal structural pockets, holes, or empty spaces formed inside the thickest structural sections of an injection-molded component.

Mechanical Breakdown & Root Causes: Sharing a root cause with sink marks, voids happen when the outer surface skin of a thick section is rigid enough to resist pulling inward. The internal volumetric shrinkage is then forced to pull material outward toward the solid skin, creating a localized internal vacuum hole. This is driven by geometric part design faults, such as excessive wall thickness variations or oversized internal bosses and ribs.

How to Fix & Engineering Solutions:

Design Optimization: Core out heavy solid geometry into thin-walled rib structures to eliminate unmanageable mass. Uniformly distribute cross-sectional volumes.
Process Adjustment: Increase packing pressure limits and extend hold times to feed material longer into shrinking zones. Switch to an optimized material grade with a lower volumetric shrinkage rate.

Defects Caused by Mold Architecture

Gate locations, venting effectiveness, runner balance, and cooling layout all influence how material flows through the cavity. When the mold design is not optimized, defects can appear even when the process is properly controlled.

4. Weld Lines

Weld lines (or knit lines) are structural boundaries that occur when two or more independent polymer flow fronts meet inside the mold cavity during the filling stage.

Visual Identification: A visible hair-thin seam, line, or joint where separate polymer flow fronts meet, often causing localized structural weakness.

Mechanical Breakdown & Root Causes: As resin splits around obstacles (such as core pins, holes, or internal cutouts), separate flow fronts are created. If these fronts lose too much thermal energy before merging, their molecular chains cannot completely entangle, leaving a permanent cosmetic and physical joint. This is primarily caused by sub-optimal mold architecture, including restrictive or poor gate placement, inadequate mold venting depths, unbalanced runner systems, or non-uniform cooling channel layouts.

How to Fix & Engineering Solutions:

Tooling Optimization: Position gates during the tooling design stage so that separate flow fronts converge in thicker regions subjected to low mechanical stress. Broaden gate cross-sections to mitigate pressure drops.
Process Adjustment: Increase melt or mold temperatures to sustain polymer mobility; elevate dynamic injection speeds to ensure rapid convergence before crystallization begins.

💡 ApexBatch Engineer’s Note: Not all weld lines are equally critical. Cosmetic weld lines may be acceptable on non-structural surfaces, while weld lines near screw bosses, snap-fits, or load-bearing features can significantly reduce mechanical strength and should be evaluated closely during your initial DFM and mold-flow review.

5. Short Shots

A short shot is a severe molding failure where the molten polymer freezes before completely filling out all features of the mold cavity.

Visual Identification: An incomplete cavity filling yielding a part with missing geometric sections, rounded edges, or unformed features.

Mechanical Breakdown & Root Causes: This defect stems from low melt or mold temperatures, insufficient injection pressure, or severe gas entrapment that physically blocks incoming plastic. It is categorized under mold design limitations such as restrictive or sub-optimal gate placement, inadequate mold venting depths, and unbalanced runner systems that restrict ideal material flow.

How to Fix & Engineering Solutions:

Process Optimization: Increase shot size or stroke volume. Step up dynamic filling speeds to fill the cavity before the polymer solidifies. Elevate injection pressure limits and temperature parameters.
Tooling Adjustment: Deepen or add mold vents to allow trapped air to escape cleanly ahead of the flow front. Enlarge gates and runner paths to minimize flow resistance.

💡 ApexBatch Engineer's Note: Short shots are often mistaken for insufficient injection pressure. In reality, trapped air, restrictive gate sizing, or excessive flow length frequently limit filling before pressure becomes the primary constraint.

6. Burn Marks

Burn marks are localized thermal defects caused by the degradation and overheating of trapped gases during high-velocity filling cycles.

Visual Identification: Black, brown, or rust-colored localized discoloration on the edges, blind pockets, or last-to-fill areas of molded parts.

Mechanical Breakdown & Root Causes: Ambient air within the cavity is pushed ahead of the incoming resin flow. If the air cannot escape through vents quickly enough, it undergoes rapid compression. This compression spikes local temperatures instantly, scorching the polymer and the mold surface (the dieseling effect). The root cause points back to mold design failures, specifically inadequate venting depths or restrictive layout structures.

How to Fix & Engineering Solutions:

Tooling Optimization: Improve vent placement at the last areas of the cavity to fill. Ensure vent depths are optimized to exhaust air cleanly without producing flash. Clean choked vents of resin residue.
Process Adjustment: Reduce injection speed profiles near the end of the stroke volume to allow gas extra time to vent naturally. Lower injection pressures.

Defects Caused by Process Conditions

Some defects occur when injection speed, pressure, temperature, or packing settings fall outside the optimal processing window. These issues are often corrected through process optimization rather than tooling modifications.

7. Flash

Flash is a common production anomaly where excess plastic escapes the intended cavity boundaries, creating thin protrusions that require secondary trimming.

Visual Identification: Thin, paper-like layers or unwanted plastic films radiating outward beyond the intended part geometry along parting lines, venting channels, or ejector pins.

Mechanical Breakdown & Root Causes: Flash occurs when molten plastic forces its way out between mating mold halves or tool inserts. It is fundamentally a processing parameter issue caused by excessive injection pressure peaks, improper dynamic filling speeds, incorrect packing profiles, or melt temperature variations. It can also indicate inadequate machine clamping force (Fc), worn parting faces, or structural tooling deflection.

How to Fix & Engineering Solutions:

Process Optimization: Reduce dynamic injection speeds and minimize packing pressure profiles. Lower melt and mold temperatures to increase fluid viscosity.
Tooling/Machine Adjustment: Verify machine clamp tonnage matches or exceeds the projected area of the component using the structural limit formula:
Fc ≥ Pcavity × Aproj
Inspect mold sealing surfaces for microscopic debris, flashing build-up, or mechanical wear.

💡 ApexBatch Engineer’s Note: Many teams immediately reduce injection pressure when flash appears. In practice, recurring flash at the same location frequently indicates parting-line wear or insufficient clamp force rather than an incorrect process window. If flash remains after pressure reduction, tooling inspection should be prioritized.

8. Flow Lines

Flow lines are cosmetic surface patterns that trace the physical trajectory and cooling behavior of the molten plastic as it enters the tool.

Visual Identification: Visible, wavy circular bands, line streaks, or rings on the surface of the component, typically clustered near gate entry points.

Mechanical Breakdown & Root Causes: The outermost layer of the resin flow front cools and solidifies prematurely, stiffening against the cold mold steel when the filling speed is too low. As hot plastic continually forces its way past this semi-solid layer, it leaves behind a banded surface texture. This is a pure processing parameter imbalance caused by improper dynamic filling speeds, excessive pressure peaks, or incorrect packing profiles.

How to Fix & Engineering Solutions:

Process Optimization: Increase injection speeds to ensure the cavity fills before the leading front loses thermal energy. Raise melt and mold temperatures to promote a uniform, continuous flow front.
Tooling Adjustment: Reposition or enlarge gates to shorten overall flow lengths and eliminate local stagnation points.

9. Jetting

Jetting occurs when a high-velocity stream of resin enters the cavity unconstrained, cooling independently of the bulk material that follows.

Visual Identification: Snake-like, wavy surface marks or internal streaks surrounded by a typical smooth finish.

Mechanical Breakdown & Root Causes: When molten plastic enters a large, open cavity through a small gate at high velocity, it can shoot forward into open space rather than filling the mold symmetrically. This free jet contacts the cold mold wall, cools down rapidly, and becomes permanently embedded in the hotter resin that fills the cavity behind it. It is tied directly to processing errors such as excessive injection pressure peaks or incorrect dynamic filling speed profiles through an un-optimized opening.

How to Fix & Engineering Solutions:

Tooling Optimization: Direct gate pathways toward an internal cavity wall or core pin feature. Forcing incoming resin to hit a solid obstruction breaks the jetting pattern and establishes a controlled filling wave. Use an overlay tab or fan gate style to disperse velocity.
Process Adjustment: Program a profiled injection speed sequence—utilizing slow initial filling speeds through the gate before accelerating.

Defects Caused by Material Selection

Material quality and preparation directly affect molding performance. Moisture contamination, resin degradation, or incompatible materials can create defects that cannot be solved through machine adjustments alone.

10. Delamination

Delamination is a severe structural defect characterized by the separation of distinct layers on the surface of a molded component.

Visual Identification: A component’s surface layers separating, flaking, or peeling away like thin sheets or flakes under mechanical stress.

Mechanical Breakdown & Root Causes: This major flaw is explicitly a material-driven issue caused by ambient moisture pellet contamination, material thermal degradation inside the barrel, resin batch incompatibility, or skipped desiccant drying procedures. If two materials with disparate melting points or chemical configurations are blended in the hopper, they cannot fuse during injection, resulting in distinct, unbonded layers.

How to Fix & Engineering Solutions:

Material Prep Optimization: Maintain strict resin moisture control and prevent foreign materials in your supply chain. Perform thorough, multi-volume barrel purging when transitioning between resin setups.
Shop-Floor Controls: Ensure hopper configurations remain sealed. Reject regrind materials showing visible contamination. Avoid mixing incompatible plastics (e.g., ABS and PC) unless specified as an alloy batch.

11. Silver Streaks (Splay Marks)

Silver streaks occur when moisture or gases become trapped within the polymer melt stream and are pushed against the mold wall during injection.

Visual Identification: Linear, splash-like patterns or metallic-looking streaks stretching along the surface of the part.

Mechanical Breakdown & Root Causes: Splay is primarily caused by moisture trapped within raw polymer pellets. When heated inside the machine barrel, this moisture turns into superheated steam bubbles. Upon injection, these bubbles flatten against the cold mold surface, creating visible silver streaks. This falls strictly under material preparation failures, specifically skipped desiccant drying procedures or ambient moisture contamination.

How to Fix & Engineering Solutions:

Material Prep Optimization: Utilize desiccant dryers to dry hygroscopic materials (such as Nylon or Polycarbonate) to exact resin specifications before molding. Regularly measure moisture levels with an analyzer to ensure levels are <0.02% by weight.
Process Adjustment: Reduce melt temperatures or decompression suck-back distances to prevent ambient gas pull-in or material degradation within the heating bands.

💡 Material Handling Insight: Many silver streak investigations start with machine settings, but the root cause is often moisture control. According to ApexBatch's engineers, verifying resin moisture content before adjusting processing parameters can eliminate unnecessary troubleshooting time.

Master Injection Molding Defects and Solutions Matrix

Use this comprehensive engineering troubleshooting matrix to quickly identify cosmetic or structural anomalies, isolate injection molding defects and causes, and deploy immediate processing adjustments or permanent tooling modifications.

Defect Type	Category	Visual Identification	Severity	Primary Root Cause	Solution
Sink Marks	Design	Surface depressions opposite thick sections or internal features	Medium	Localized shrinkage caused by excessive wall thickness or low packing	Reduce wall thickness, optimize rib design, increase hold pressure and packing time
Warpage	Design	Bent, bowed, or twisted geometry after ejection	High	Differential shrinkage caused by uneven cooling or non-uniform walls	Maintain uniform wall thickness, balance cooling channels, improve structural support
Vacuum Voids	Design	Internal cavities or air pockets in thick sections	High	Internal shrinkage within heavy cross-sections	Core out thick sections, increase packing pressure, extend hold time
Weld Lines	Mold Design	Visible seam where multiple flow fronts meet	Medium	Premature cooling of converging melt fronts	Optimize gate location, increase melt temperature, improve flow balance
Short Shots	Mold Design	Incomplete filling of the cavity	High	Restricted flow path, trapped air, or insufficient filling pressure	Improve venting, enlarge gates and runners, increase injection pressure
Burn Marks	Mold Design	Black or brown discoloration near last-fill regions	Medium	Compression and overheating of trapped gases	Improve venting, clean vents, reduce end-of-fill injection speed
Flash	Process	Thin excess material along parting lines or ejector pins	Low–Medium	Excessive injection pressure or insufficient clamping force	Reduce pressure, lower melt temperature, inspect mold sealing surfaces
Flow Lines	Process	Wavy streaks or surface bands near gates	Low	Premature cooling during filling	Increase injection speed, raise melt temperature, optimize gate design
Jetting	Process	Snake-like surface patterns following the flow path	Medium	High-velocity resin entering the cavity without guidance	Modify gate design, reduce initial injection speed, use velocity profiling
Delamination	Material	Surface layers peeling or separating	High	Material contamination or incompatible resin mixing	Improve material handling, purge equipment thoroughly, avoid incompatible materials
Silver Streaks	Material	Silver-colored streaks on the surface	Medium	Moisture contamination or gas release from resin	Properly dry resin, monitor moisture content, reduce melt degradation

Frequently Confused Injection Molding Defects

Sink Marks vs. Vacuum Voids

Both defects originate from volumetric material shrinkage during the cooling stage. The difference is that sink marks pull the material inward, forming depressions on the exterior surface. Vacuum voids occur internally when the outer skin is too rigid to collapse, tearing the inner core apart into a hollow bubble.

Weld Lines vs. Flow Lines

Weld lines form explicitly due to the separation and physical collision of separate flow fronts around obstacles, presenting a structural joint. Flow lines result from fluctuations in flow velocity and uneven cooling rates of a single continuous flow front, presenting purely as surface waves.

Burn Marks vs. Material Discoloration

Burn marks are caused by high-pressure compression of trapped gases (dieseling effect) at the ends of flow paths, charring the plastic. Discoloration usually spans wider surface areas and is driven by thermal or chemical resin degradation inside an overheated barrel.

Flash vs. Overpacking

Flash extends outside the intended geometry because polymer escaped between separating mold halves or venting channels. Overpacking compresses too much material inside the intended geometry, changing part dimensions and causing sticky ejection without necessarily pushing visible overflow out.

Preventing Defects Through Design, Process Control, and Mold Engineering

While machine parameter adjustments can reduce defect severity during production, the most effective strategy is to prevent defects before they occur. In injection molding, the majority of recurring defects can be traced back to decisions made long before the first production cycle begins.

💡 Engineering Observation: In production troubleshooting, experienced process engineers rarely begin by adjusting machine settings alone. Repeating defects that consistently appear in the same location are often linked to part geometry, gate design, venting, or cooling limitations. Process adjustments can reduce symptom severity, but permanent solutions frequently require design or tooling modifications.

1. Design for Manufacturability (DFM): Eliminate Risks Before Tooling

Many injection molding defects originate long before production begins. Features such as non-uniform wall thickness, oversized ribs and bosses, insufficient draft angles, and poorly positioned gates can create molding challenges that become difficult and costly to correct after tooling is built. A Design for Manufacturability (DFM) review helps identify these risks early by evaluating:

Wall Thickness Consistency: Large variations in section thickness cause uneven cooling and differential shrinkage, increasing the likelihood of sink marks, warpage, and vacuum voids.
Rib and Boss Proportions: While commonly used to improve stiffness, excessive thickness frequently creates localized shrinkage that cannot be fully compensated for through process adjustments. In many cases, modifying the geometry is more effective than increasing packing pressure.
Tooling Elements: Evaluates draft angles, stress concentrations, sharp corners, gate/vent locations, cooling feasibility, and overall tooling complexity.

2. Mold Flow Analysis – Predict Before You Produce

Even a well‑designed part can fail if melt behavior isn't fully understood. Mold flow simulation gives engineers a virtual preview of filling, packing, and cooling—before any steel is cut. What a mold flow study reveals:

Fill Patterns: Identifies short‑shot risks, air traps, hesitation zones, and jetting tendencies.
Weld Lines: Pinpoints where flow fronts merge and whether that junction will be cosmetic or structural.
Cooling Uniformity: Detects hot spots, uneven temperature gradients, and regions that drive part deformation.
Shrinkage & Stress: Forecasts volumetric shrinkage, residual stress, and likely deformation patterns.

💡 ApexBatch Tooling Note: Experienced ApexBatch tooling engineers rarely use mold-flow simulation as a simple pass-or-fail tool. Instead, simulation is used to actively compare alternative gate locations, runner layouts, and cooling strategies before manufacturing begins.

3. Scientific Molding – Lock In a Stable Process Window

Defects rarely come from a single wrong setting; they come from instability. Scientific molding replaces trial‑and‑error with a repeatable, measurable process window by breaking the cycle into three tightly controlled phases:

Filling (Velocity‑Controlled): Maintains a consistent melt‑front speed to prevent flow lines, jetting, short shots, and excessive shear heating.
Packing (Pressure‑Controlled): Applies staged pressure to compensate for cooling shrinkage, reducing sink marks, vacuum voids, and dimensional variation.
V/P Switchover: The critical transition from velocity to pressure control. Too early causes short shots; too late results in flash and inconsistent part weights. Precision here is non‑negotiable.

4. Process Monitoring: Detect Variation Before It Creates Scrap

Material variations, machine wear, environmental changes, and tooling degradation can gradually push a process outside its optimal operating window. Real-time monitoring helps identify these shifts before visible defects appear via:

Cavity Pressure Monitoring: Provides a direct measurement of what is happening inside the mold to flag emerging issues before dimensional defects become visible.
Mold Temperature Monitoring: Tracks temperature variation directly affecting shrinkage behavior, cooling consistency, and surface finish.
Process Trend Analysis: Tracks cycle-to-cycle consistency to identify gradual process drift and take corrective action before scrap rates increase.

5. Preventive Mold Maintenance: Protect Long-Term Process Stability

Even the best-designed mold will gradually deteriorate without maintenance. A preventive maintenance program should routinely inspect:

Parting Surfaces: Wear or damage along the parting line leads to flash and mold sealing issues.
Venting Features: Blocked or worn vents restrict airflow ahead of the melt front, causing burn marks or short shots.
Cooling Channels: Scale buildup within cooling lines creates uneven temperature distribution across the cavity, driving warpage and sink marks.
Ejection Systems: Misaligned or worn ejector pins, sleeves, and return pins can leave witness marks and distort soft components upon demolding.

Get Early Feedback on Injection Molding Design Risks

Before committing to tooling, it is highly beneficial to evaluate your design for common manufacturability concerns such as non-uniform wall thickness, insufficient draft angles, oversized ribs, and potential gating/venting challenges.

At ApexBatch, every injection molding quotation includes a comprehensive Design for Manufacturability (DFM) review to help identify these issues early in the development process.

Frequently Asked Questions

What are the primary injection molding defects and causes behind surface depressions?

The primary injection molding defects and causes behind surface depressions are rooted in localized thermal shrinkage within heavy geometries or inadequate packing profiles, which force the internal core to pull the outer skin inward to create visible sink marks.

Do sink marks affect part strength?

Sink marks generally do not affect primary part strength because they are predominantly cosmetic in nature, though severe surface depressions can indicate underlying internal stress concentrations or accompanying vacuum voids that will significantly reduce structural performance under mechanical load.

How does mold venting affect short shots and burn marks?

Mold venting directly impacts short shots and burn marks because poor venting traps ambient air inside the cavity, creating a physical cushion that blocks incoming resin to cause short shots, or compresses rapidly under extreme filling pressures to superheat and create permanent burn marks.

Can machine settings eliminate warpage?

Machine settings cannot completely eliminate severe warpage when the defect is deeply rooted in improper part design or unbalanced tool cooling circuits. While adjusting machine parameters can minimize minor dimensional distortion, physical geometry changes are required for a permanent fix.

Why do defects vary between resin batches?

Defects vary across separate resin batches because small lot-to-lot variances in a material's viscosity, moisture capacity, and molecular weight distribution alter its flowing behavior slightly, meaning identical machine configurations may require fine-tuning.

What is the difference between a weld line and a meld line?

Weld lines generally form when flow fronts meet at larger convergence angles and with insufficient thermal energy for molecular entanglement, while meld lines form under more favorable flow and temperature conditions, producing stronger bonding and less visible seams.
